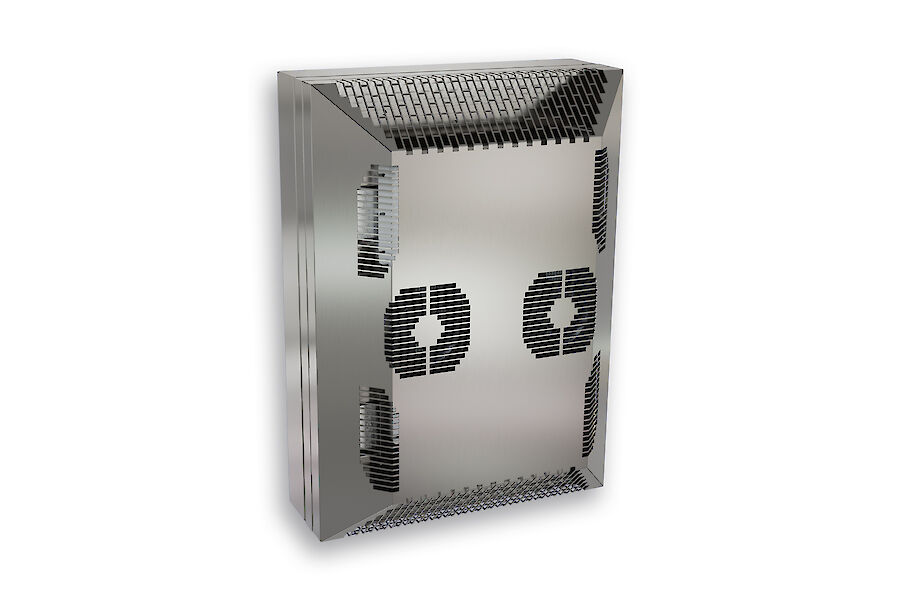

Thermoelectric cooler TG 6405-230V External

Related Products

TG 6405-230V External
Brand Name
SoliTherm Peltier
Order Number
6405305
Housing Material
Stainless steel AISI 304 (V2A)
Ingress protection
IP 66, Type 4X
Included
Mounting frame
Note
The torque for the mounting nuts should be 4.5 Nm.
Approvals
CE, cURus, RoHS
Optional
In stainless steel AISI 316 (V4A) with Chromated Heatsinks order no. 64053054
Taric Code
84158300
Cooling capacity 95F/95F
1370 BTU
Temperature range
-4°F - 149°F
Air volume flow (system / unimpeded)
Ambient air circuit: 141 / 191 cfm
Cabinet air circuit: 141 / 191 cfm
Mounting
External (with frame)
Dimension H x W x D
23.6 x 17 x 8.4 inch
Weight
82 lbs.
Cut out dimensions
7.9 x 21.6 inch
Voltage / Frequency
120 - 230 V ~ 50/60 Hz
Nominal current
4.0 A @ 120 V
Starting current
5.8 A @ 120 V
3.0 A @ 230 V
Max. current
4.0 A @ 120 V
2.1 A @ 230 V
Nominal power
460 W
Max. power
480 W
Fuse
6 A (T) @ 120 V
4 A (T) @ 230 V
Connection
Connection terminal block
Datasheet
Generate PDF
Instruction manual
Generate PDF
CAD files
STEP
Mounting template
DXF
Certifications
EC declaration
Video
