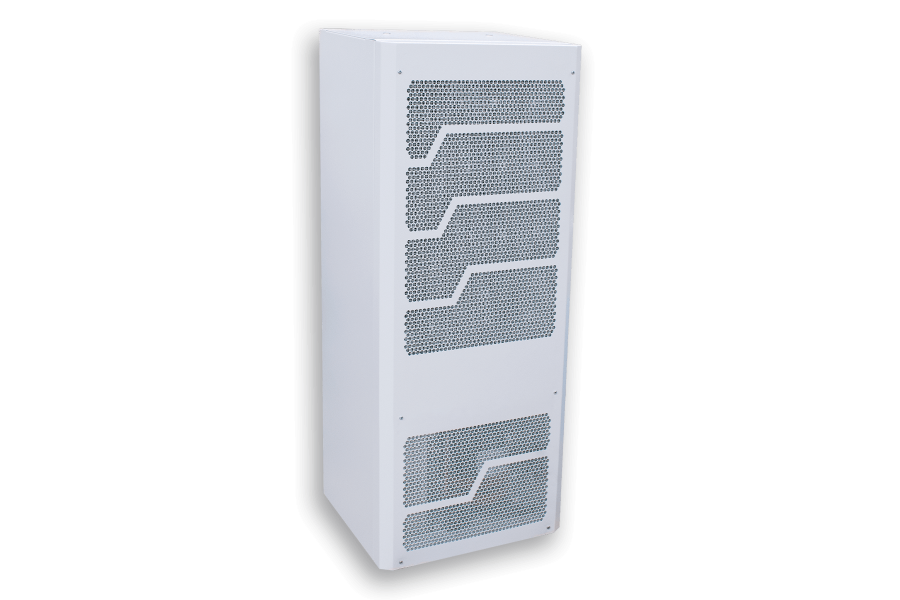

Enclosure Air Conditioners - UL Type 12, 4, 3R and 4X
SoliTherm’s Progressive Air Conditioner series are the perfect solution for Indoor and Outdoor enclosure cooling applications. These units meet the demand for a variety of environmental conditions. All Progressive air conditioners meet UL Type 12, 4, 3R and 4x requirements and are rated IP56. Included in each unit are the most popular accessories, as well as an integrated condensate evaporation package. Several cooling capacities with same-size housing simplify the product selection and acquisition of replacement parts.
Cooling capacities range from 1000 BTU up to 21,000 BTU and come in voltage configurations of 120 V, 230 V or 480 V single or three -phase. Each unit is equipped with a digital programmable controller, which is viewable and accessible from inside of enclosure. Operating temperature ranges are from -40°F and 131°F.
Metal mounting flange allow for quick and easy installation. All units are powder coated steel, (RAL 7035). Stainless steel units come with a standard 304 finish.
 |
 |
2 Year Standard Warranty (only for Seifert Inc. customers)
| Type | Mounting | Cooling capacity (95F95F) | Material housing |
|---|---|---|---|
| OC 8703 | Wall mounted | 1,025 BTU/hr | Mild steel, powder coated |
| OC 8706 | Wall mounted | 2,050 BTU | Mild steel, powder coated |
| OC 8708 | Wall mounted | 2,700 BTU/hr | Mild steel, powder coated |
| OC 8712 | Wall mounted | 3,920 BTU/hr @ 50 Hz 4,100 BTU/hr @ 60 Hz | Mild steel, powder coated |
| OC 8715 | Wall mounted | 4,950 BTU/hr @ 50 Hz 5,100 BTU/hr @ 60 Hz | Mild steel, powder coated |
| OC 8720 | Wall mounted | 6,800 BTU/hr @ 50 Hz 7,100 BTU/hr @ 60 Hz | Mild steel, powder coated |
| OC 8725 | Wall mounted | 8,100 BTU/hr @ 50 Hz 8,500 BTU/hr @ 60 Hz | Mild steel, powder coated |
| OC 8740 | Wall mounted | 13,600 BTU/hr | Mild steel, powder coated |
| OC 8762 | Wall mounted | 21,170 BTU/hr | Mild steel, powder coated |
