Features
- Exceptional air flow performance with outstanding value for money
- Energy-efficient product lineup

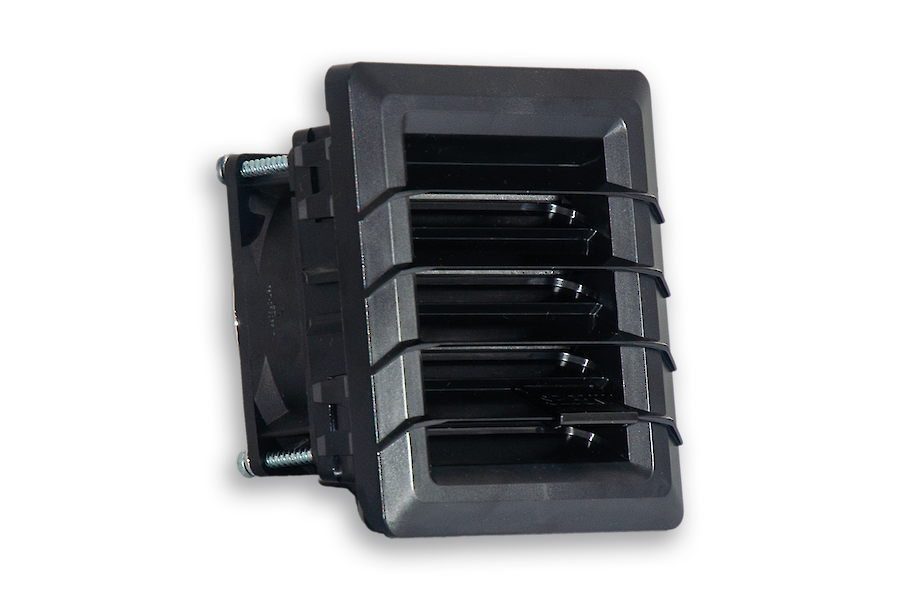

- Suitable for indoor and outdoor (black models) applications
- Models with IP 55 protection available
- Tool-free mounting, easy and quick replacement of the filter media
- Pair our FDA-approved, UL-certified protection hoods with SOLIVENT PRO filter fans for cleanroom and food-grade applications
- Customised colour options upon request
For complimentary exhaust filters, please click HERE
Order Number 4711022001 Brand Name SOLIVENT PRO Color RAL 7035 Housing Material PC plastic / RAL 7035 Ingress protection to EN 60 529 IP 54 UL Typ (UL 50E) 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories FC 4000 000FC 4000 000 FDAThermostat 301050 Spare Parts Ersatzfilter #02 für SF 4711 Air flow unimpeded IP 54 12.6 / 13.3 CFM Air flow with exhaust filter IP 54 6.9 / 7.6 CFM Air flow with 2 exhaust filters IP 54 9.8 / 10.5 CFM Operating temperature range 14°F - 140°F Storage temperature range -40°F - 158°F Mounting Wandanbau Dimension H x W x D A = Height | B = Width | C = Depth
115.5 x 115.5 x 80.6 (11.6+69) mm Weight 0.66 lbs. Cut out dimensions 3.62 x 3.62 inch Voltage / Frequency 230 V ~ 50/60 Hz Rated current 0.24 / 0.25 A Power consumption 3.6 / 3.9 W Noise level 32 dB(A) Fuse 1 A (T) Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4711022003 54 12 / 3R RAL 9005 B 21 / 23 m³/hr 12 / 13 m³/hr 471102R2001 54 12 / 3R RAL 7035 S 19 / 20 m³/hr 471102R2003 54 12 / 3R RAL 9005 S 19 / 20 m³/hr 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Air flow unimpeded IP 54 12.6 / 13.3 CFM Air flow with exhaust filter IP 54 6.9 / 7.6 CFM Air flow with 2 exhaust filters IP 54 9.8 / 10.5 CFM Operating temperature range -40°F - 131°F Storage temperature range -40°F - 158°F Mounting Wandanbau Dimension H x W x D A = Height | B = Width | C = Depth
115.5 x 115.5 x 80.6 (11.6+69) mm Weight 0.66 lbs. Cut out dimensions 3.62 x 3.62 inch Voltage / Frequency 230 V ~ 50/60 Hz Rated current 0.24 / 0.25 A Power consumption 3.6 / 3.9 W Noise level 32 dB(A) Fuse 1 A (T) Datasheet Generate PDF Instructions User manual SOLIVENT PRO No Order Information
Order Number 4711122001 Brand Name SOLIVENT PRO Color RAL 7035 Housing Material PC plastic / RAL 7035 Ingress protection to EN 60 529 IP 54 UL Typ (UL 50E) 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories FC 4000 000FC 4000 000 FDAThermostat 301050 Spare Parts Ersatzfilter #02 für SF 4711 Air flow unimpeded IP 54 12.6 / 13.3 CFM Air flow with exhaust filter IP 54 6.9 / 7.6 CFM Air flow with 2 exhaust filters IP 54 9.8 / 10.5 CFM Operating temperature range 14°F - 140°F Storage temperature range -40°F - 158°F Mounting Wandanbau Dimension H x W x D A = Height | B = Width | C = Depth
115.5 x 115.5 x 80.6 (11.6+69) mm Weight 0.66 lbs. Cut out dimensions 3.62 x 3.62 inch Voltage / Frequency 120 V ~ 50/60 Hz Rated current 0.22 / 0.21 A Power consumption 3.2 / 3.3 W Noise level 32 dB(A) Fuse 1 A (T) Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4711122003 54 12 / 3R RAL 9005 B 21 / 23 m³/hr 12 / 13 m³/hr 471112R2001 54 12 / 3R RAL 7035 S 19 / 20 m³/hr 471112R2003 54 12 / 3R RAL 9005 S 19 / 20 m³/hr 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Air flow unimpeded IP 54 14.1 / 15.0 CFM Air flow with exhaust filter IP 54 8.1 / 8.7 CFM Air flow with 2 exhaust filters IP 54 9.8 / 10.5 CFM Operating temperature range -40°F - 131°F Storage temperature range -40°F - 158°F Mounting Wandanbau Dimension H x W x D A = Height | B = Width | C = Depth
115.5 x 115.5 x 80.6 (11.6+69) mm Weight 0.66 lbs. Cut out dimensions 3.62 x 3.62 inch Voltage / Frequency 120 V ~ 50/60 Hz Rated current 0.22 / 0.21 A Power consumption 3.2 / 3.3 W Noise level 32 dB(A) Fuse 1 A (T) Datasheet Generate PDF Instructions User manual SOLIVENT PRO No Order Information
Order Number 4711322001 Brand Name SOLIVENT PRO Color RAL 7035 Housing Material PC plastic / RAL 7035 Ingress protection to EN 60 529 IP 54 UL Typ (UL 50E) 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories FC 4000 000FC 4000 000 FDA Spare Parts Ersatzfilter #02 für SF 4711 Air flow unimpeded IP 54 12.5 CFM Air flow with exhaust filter IP 54 9.1 CFM Air flow with 2 exhaust filters IP 54 9.5 CFM Operating temperature range -14°F - 131°F Storage temperature range -40°F - 158°F Mounting Wandanbau Dimension H x W x D A = Height | B = Width | C = Depth
115.5 x 115.5 x 80.6 (11.6+69) mm Cut out dimensions 3.62 x 3.62 inch Voltage / Frequency 24 V DC Rated current 0.6 A Power consumption 14.4 W Noise level 56 dB(A) Fuse 1 A (T) Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4711322003 54 12 / 3R RAL 9005 B 21 m³/hr 15 m³/hr 471132R2001 54 12 / 3R RAL 7035 S 19 m³/hr 471132R2003 54 12 / 3R RAL 9005 S 19 m³/hr 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
Order Number 4711322003 Brand Name SOLIVENT PRO Color RAL 9005 Housing Material PC plastic / RAL 7035 Ingress protection to EN 60 529 IP 54 UL Typ (UL 50E) 12 Approvals CE, cURus, cULus UL File Number E498756 Accessories FC 4000 000FC 4000 000 FDA Spare Parts Ersatzfilter #02 für SF 4711 Air flow unimpeded IP 54 12.5 CFM Air flow with exhaust filter IP 54 9.1 CFM Air flow with 2 exhaust filters IP 54 9.5 CFM Operating temperature range -14°F - 131°F Storage temperature range -40°F - 158°F Mounting Wandanbau Dimension H x W x D A = Height | B = Width | C = Depth
115.5 x 115.5 x 80.6 (11.6+69) mm Cut out dimensions 3.62 x 3.62 inch Voltage / Frequency 24 V DC Rated current 0.6 A Power consumption 14.4 W Noise level 56 dB(A) Fuse 1 A (T) Datasheet Generate PDF Instructions User manual SOLIVENT PRO Order number IP rating UL Type RAL colour Flow type1) Air flow (m³/h)2) Air flow with exhaust filter (m³/h) 4711322003 54 12 / 3R RAL 9005 B 21 m³/hr 15 m³/hr 471132R2001 54 12 / 3R RAL 7035 S 19 m³/hr 471132R2003 54 12 / 3R RAL 9005 S 19 m³/hr 1) B = Blowing – from ambient into the enclosure (standard version)
S = Suction – from enclosure to ambient (on request)2) unimpeded 50/60 Hz
