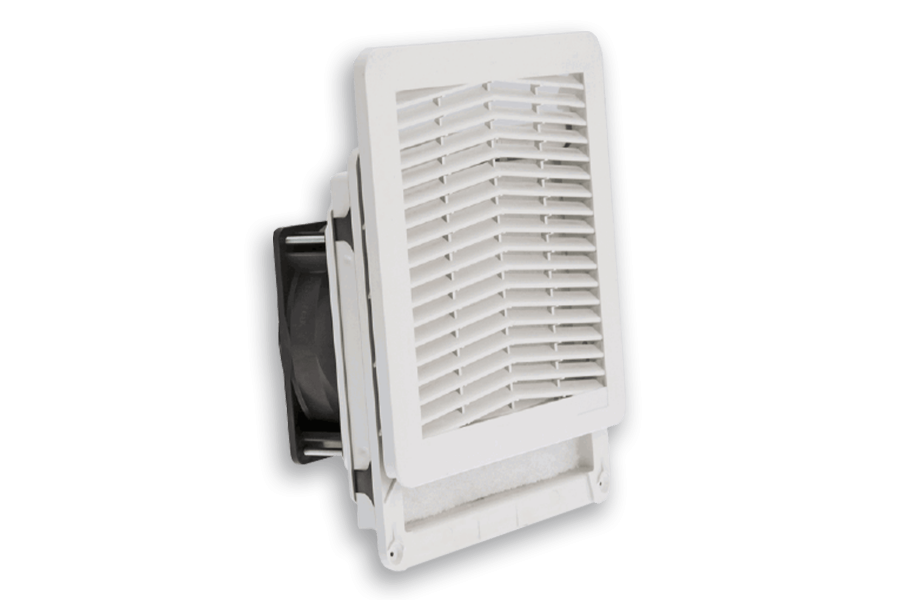

Filter fans for a safe and reliable air circulation – FL 4611D

Features

Quick Links

• CalCoolator Sizing Software
• Promotional Flyer

• • Description
  • Technical Data
  • Downloads
  • Order Information

  • Order Number	4611D2100
    Colour	RAL 7035
    Housing Material	ABS Plastic
    IP protection class to EN 60 529	IP 54
    Optional	Different housing colours available on request With NEMA 3R protection part no. 4611D2130
    Approvals	CE, cULus, CSA

    •

  • Air flow unimpeded IP 54	150 m³/h
    Operating Temperature Range	-10°C - 55°C
    Static pressure	84 Pa
    Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth	250 x 250 x 111.6 mm
    Weight	0.9 kg
    Cut out dimensions	223 +1.5 x 223 +1.5 mm
    Voltage / Frequency	24 V DC
    Rated current	0.32 A
    Power consumption	7.6 W
    Wall thickness	1.5 - 2.5 mm
    Filter class (ISO 16890)	G3 gemäß EN 779
    Installation	Elastic clips or by 4 self-threading screws
    Noise level	42 dB(A)

  • Datasheet	Generate PDF
    CAD files	3D - PDFSTEP
    Certification	EC declaration
    Certification (UK)	UKCA declaration

  • With NEMA 3R protection part no.	4611D2130
    Taric code	84145915
    GTIN (EAN)	5350604100497
