Features
- tool free installation
- one filter mat only
- standard enclosure cutouts (5 sizes)
- prevent the formation of hot pockets inside enclosures
Quick Links

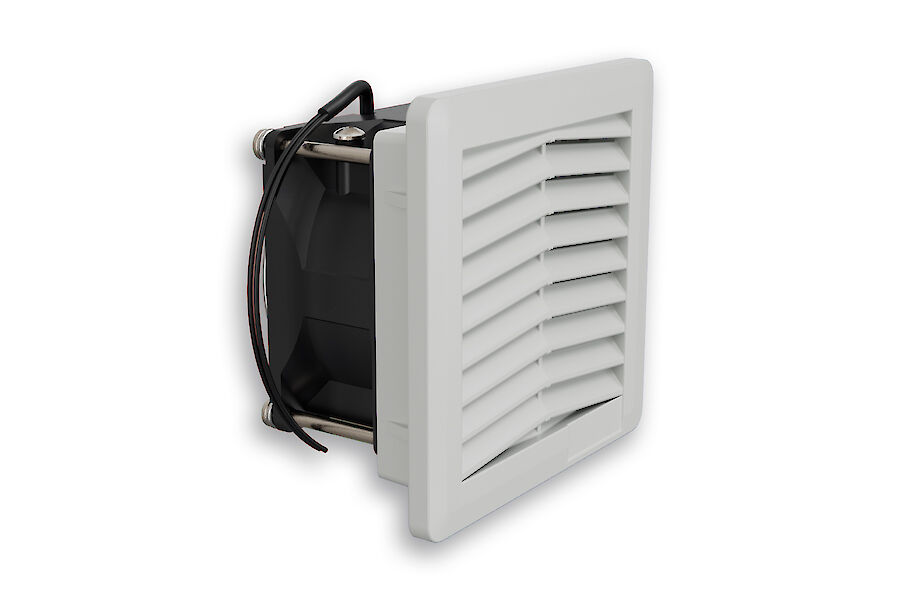

Order Number 4010D2100 Colour RAL 7035 Housing Material ABS Plastic Ingress Protection IP 54 Optional Different housing colours available on request
With NEMA 3R protection part no. 4010D2130Approvals CE, cURus, cULus, CSA Operating Temperature Range -10°C - +55°C Air flow unimpeded 23 m³/h Static pressure 44 Pa Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
106.5 x 106.5 x 53.6 mm Weight 0.35 kg Cut out dimensions 92.5 +0.5 x 92.5 +0.5 mm Voltage / Frequency 24 V DC Rated current 0.092 A Power consumption 2.2 W Degree of separation 85% - DIN 24185 Wall thickness 1 - 2 mm Filter class G3 gemäß EN 779 Installation Elastic clips or by 4 self-threading screws Noise level 30 dB(A) Datasheet Generate PDF CAD files 3D - PDFSTEP Certification EC declaration Certification (UK) UKCA declaration With NEMA 3R protection part no. 4010D2130 Taric code 84145915 GTIN (EAN) 5350604100176
