Features
- UL certification in connection with Seifert filter fans / exhaust filters
- models with food safe seal (blue)
- stainless steel version with Type 4X classification
- screwless mounting and removal of the hood
- easy to clean
- protection against water jets
Quick Links

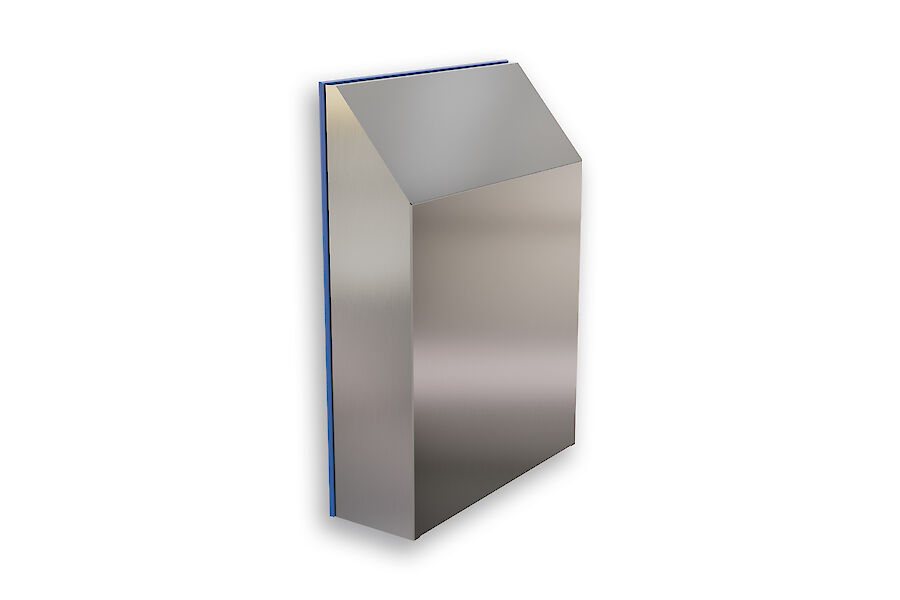

Order Number 4000400020 Brand Name SOLIFLEX Housing Material Stainless steel AISI 304 (V2A) IP protection class to EN 60 529 IP 56 / Type 1,2,3,3X,3R,3RX,3S,3SX, 4,4X,5,12,12K,13
when installed according to instruction manualNote Suitable for 325 x 325 mm filter fan / exhaust filter
With food safe gasketApprovals CE, cULus, cURus UL File Number E498756 Mounting Stainless steel support to apply between base and clips Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
480 x 350 x 110 mm Weight 2.5 kg Installation Mounting screws torque: 4.5 Nm / 40 Lb-In Datasheet Generate PDF Instruction manual Generate PDF CAD files 44999-1.pdf44999.stp Certification EC declaration Certification (UK) UKCA declaration Taric code 73269098 GTIN (EAN) 5350604100978
