Features
- suitable for small enclosures and small control panels
- for indoor and outdoor applications
- maintenance free
- can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)

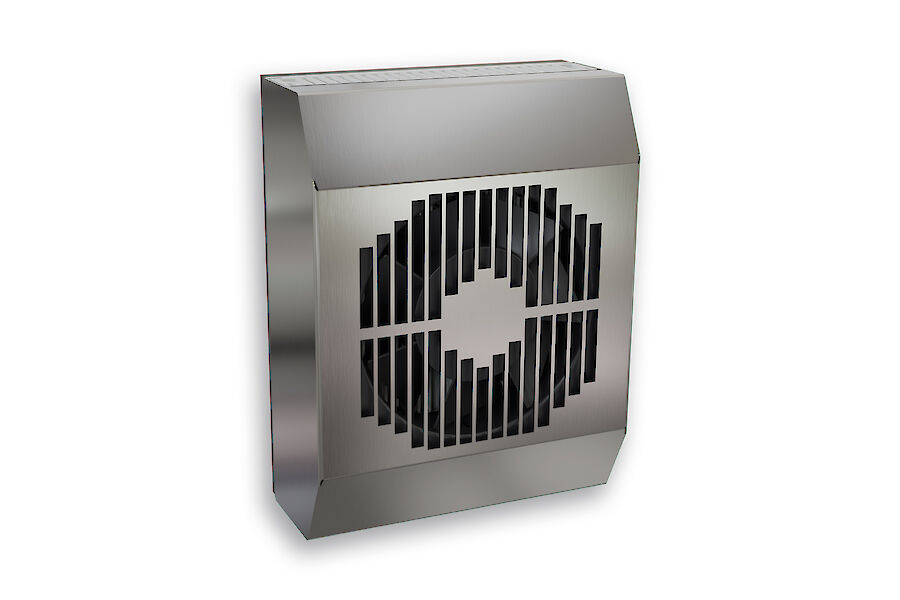

Order Number 3050303 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) IP protection class to EN 60 529 IP 66 / UL Type 12, 4, 4X Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Accessories Bimetallic temperature controllerThermostat 301510Condensate Kit 3030 / 3050 Cooling capacity L35L35 (EN14511-3) 50 W Air flow volume (system / unimpeded) Ambient air circuit: 64 / 170 m³/h
Cabinet air circuit: 23 / 72 m³/hOperating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Mounting Recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
200 x 154 x 138 (65+73) mm Weight 3.3 kg Cut out dimensions 170 x 120 mm Voltage / Frequency 24 V DC Current L35L35 2.4 A Starting current 3.7 A Max. current 2.8 A Nominal power L35L35 58 W Max. power 66 W Fuse 4 A (T) Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files 3050303.stp60451.pdf Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 30503034 Box dimension 244 x 142 x 159 mm Gross weight 4 kg Taric code 84158300

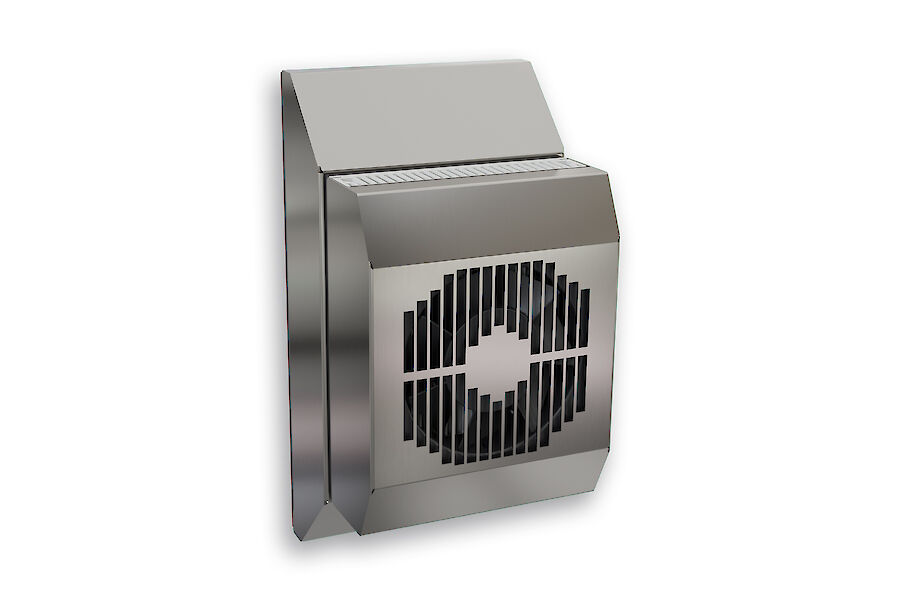

Order Number 3050305 Brand Name SOLITHERM PELTIER Housing Material Stainless steel AISI 304 (V2A) IP protection class to EN 60 529 IP 66 / UL Type 12, 4, 4X Note The torque for the mounting nuts should be 4.5 Nm. Approvals CE, cURus Accessories Bimetallic temperature controllerThermostat 301510Condensate Kit 3030 / 3050 Cooling capacity L35L35 (EN14511-3) 50 W Air flow volume (system / unimpeded) Ambient air circuit: 64 / 170 m³/h
Cabinet air circuit: 23 / 72 m³/hOperating Temperature Range -20°C - 70°C UL temperature range -20°C - 65°C Mounting Wall mounted (with frame) Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
302 x 158 x 141 mm Weight 3.9 kg Cut out dimensions 270 x 130 mm Voltage / Frequency 24 V DC Current L35L35 2.4 A Starting current 3.7 A Max. current 2.8 A Nominal power L35L35 58 W Max. power 66 W Fuse 4 A (T) Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files 60451.pdf3050305.stp Mounting template DXF Certification EC declaration Certification (UK) UKCA declaration Video Peltier cabinet cooling units Stainless steel AISI 316 (V4A) housing part no. 30503054 Box dimension 244 x 142 x 159 mm Gross weight 4.6 kg Taric code 84158300
