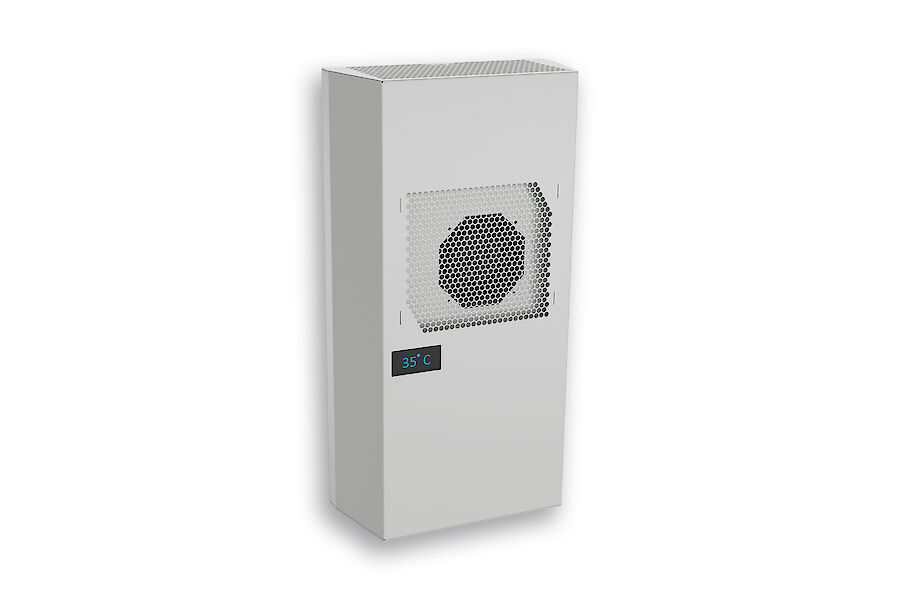

Features
- the nano-coated condensor allows a filterless operation
- practically maintenance-free
- adjustable electronic controller with color display
- for aggressive or polluted environments, upgradeable filter options
- wall mounted
Order Number 43051081 Brand Name COMPACT INDOOR Colour RAL 7035 Housing Material Mild steel, powder coated IP protection class to EN 60 529 IP 54 / TYPE 12 SK notes Customer: Spinner Approvals CE, cURus, cULus Accessories Stainless Steel Filter Holder 4305/08/09/10Fibre Filter Media 4305/08/09/10Washable Aluminium Filter 4305/08/09/10 Cooling capacity L35L35 (EN14511-3) 620 W Cooling capacity L35L50 (EN14511-3) 440 W Compressor type Reciprocating compressor Refrigerant / GWP R134a / 1430 Refrigerant charge 163 g / 5.7 oz High / low Pressure 23.3 / 5.3 bar
338 / 77 psigAir flow volume (system / unimpeded) Ambient air circuit: 435 / 550 m³/h
Cabinet air circuit: 200 / 250 m³/hOperating Temperature Range 10°C - 55°C Mounting Recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
715 x 372 x 260 (170+90) mm Weight 33.7 kg Cut out dimensions 316 x 654 mm Voltage / Frequency 120 V ~ 60 Hz UL Voltage / Frequency 115 V ~ 60 Hz Current L35L35 4.4 A Starting current 19.1 A Max. current 5.3 A Nominal power L35L35 440 W Max. power 560 W Fuse 10 A (T) Short-circuit current rating 5 kA Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DWG Certification EC declaration Certification (UK) UKCA declaration Video Installation of COMPACT INDOOR cabinet cooling units Stainless steel housing part no. 43051026 Taric code 84158200
