Features
- wide voltage range
- dynamic heating through PTC technology
- with contact protection
- energy efficient and environmentally friendly
- compact size for small enclosures
Quick Links

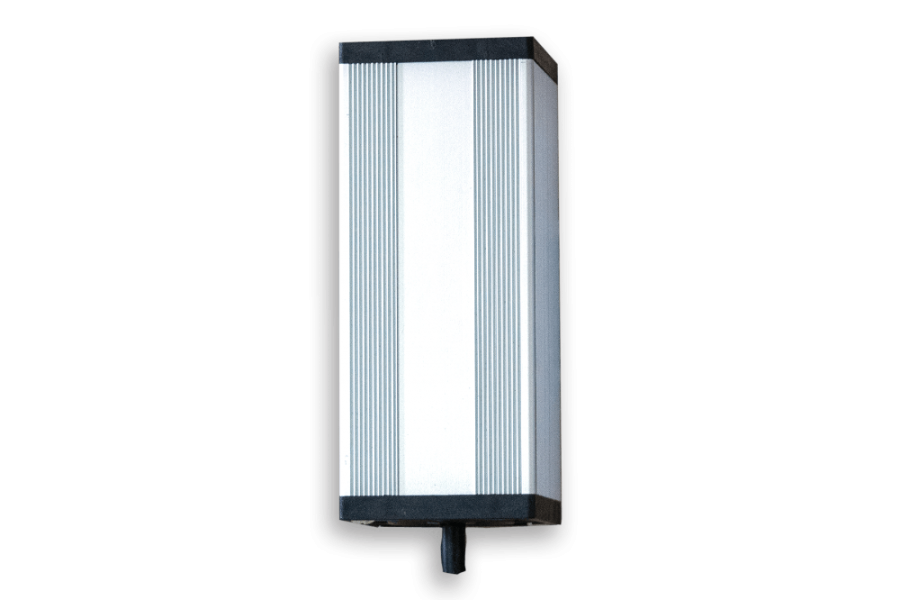

Order Number 502050 Brand Name SOLIFLEX Colour silver Housing Material Aluminum Note PTC resistor self-regulating Approvals CE, cURus Accessories Adjustable thermostat NC Heating power at 10°C 50 W Operating Temperature Range -45°C - 70°C Mounting DIN rail Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
125 x 41 x 41 mm Weight 0.19 kg Voltage / Frequency 120-240 V AC/DC ~ 50/60 Hz Max. current 3.5 A Connection Silicon cable, 2 x 0.5 mm², length 400 mm Datasheet Generate PDF CAD files STEP Certification EC declaration Taric code 85162999 GTIN (EAN) 5350604020030
