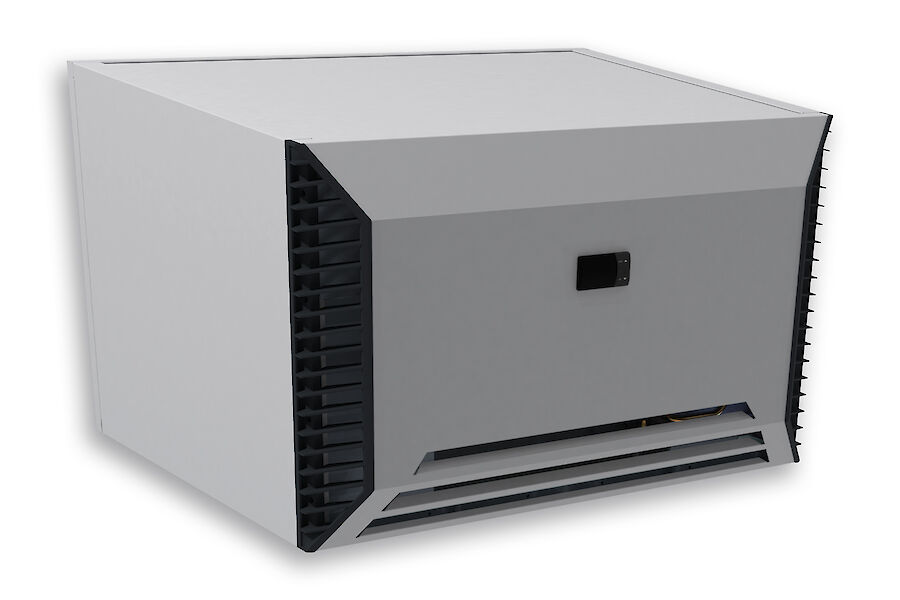

Features
- modern industrial design
- maximum cooling power with minimum space
- digital controller with display
- microchannel condenser allows significant reduction in refrigerant charge resulting in a lower CO₂ equivalent
- temperature range 5˚C - 55˚C
- built-in electrical condensate evaporator
- RS 485 MODBUS interface included
Quick Links
Cooling capacity L35L35 (EN14511-3) 2100 W Cooling capacity L35L50 (EN14511-3) 1600 W Compressor type Rotary piston Refrigerant / GWP R134a / 1430 Refrigerant charge 320 g / 11.28 oz. High / low Pressure 32 / 6 bar
464 / 87 psigAir flow volume (system / unimpeded) Ambient air circuit: 1200 m³/h
Enclosure air circuit: 602 m³/hOperating Temperature Range 5°C - 55°C Mounting Roof mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
435 x 595 x 475 mm Weight 40 kg Voltage / Frequency 230 V ~ 50/60 Hz Current L35L35 4.0 A Starting current 22 A Max. current 5.4 A Nominal power L35L35 906 W Fuse 15 A (T) Short-circuit current rating 5 kA Connection 4 pole connector for power
5 pole connector for signals
3 pole connector for RS 485 MODBUSDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF Certification EC declaration Certification (UK) UKCA declaration Stainless steel housing part no. 952000S62 Taric Code 84158200
Cooling capacity L35L35 (EN14511-3) 2100 W Cooling capacity L35L50 (EN14511-3) 1600 W Compressor type Rotary piston Refrigerant / GWP R134a / 1430 Refrigerant charge 424 g. / 15 oz. High / low Pressure 28 / 6 bar
406 / 88 psiAir flow volume (system / unimpeded) Ambient air circuit: 1200 m³/h
Enclosure air circuit: 630 m³/hOperating Temperature Range 5°C - 55°C Mounting Roof mounted Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
435 x 595 x 475 mm Weight 40.1 kg Voltage / Frequency 400/460 V - 50/60 Hz 3~ Current L35L35 1.7 / 1.8 A Starting current 13 A Max. current 2.4 A Nominal power L35L35 0.88 / 1.1 kW Max. power 1.6 kW Fuse 15 A (T) Short-circuit current rating 5 kA Connection 4 pole connector for power
5 pole connector for signals
3 pole connector for RS 485 MODBUSDatasheet Generate PDF Instruction manual Generate PDF CAD files STEP2D - PDF Certification EC declaration Certification (UK) UKCA declaration Stainless steel housing part no. 952020S62 Taric Code 84158200
