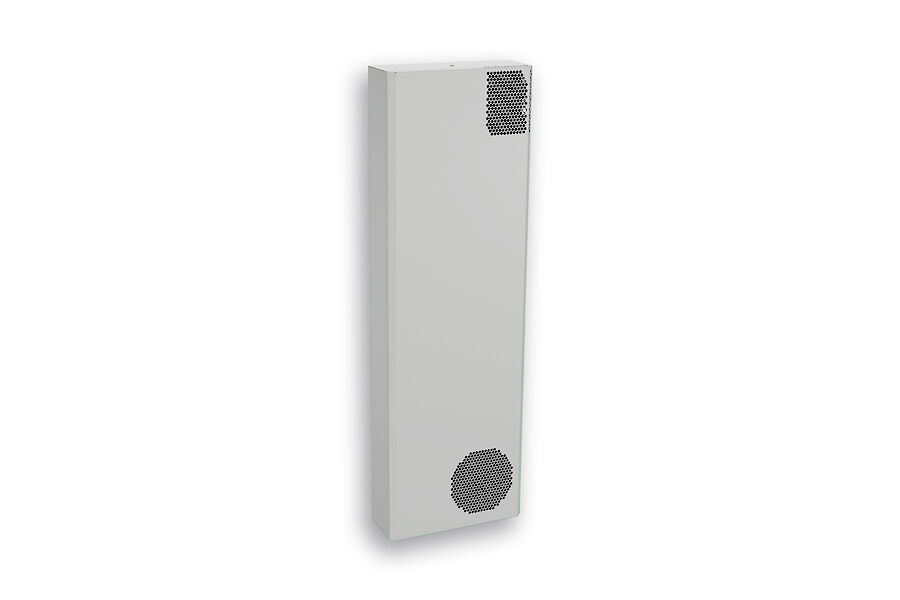

Features
- protection class IP 54
- integrated condensate evaporation
- completely filterless, thus maintenance free
- wall mounted or recessed
- NEMA 4X covers for stainless steel models
Quick Links
Order Number 42720001 Brand Name SLIMLINE Colour RAL 7035 Housing Material Mild steel, powder coated IP protection class to EN 60 529 IP 54 / TYPE 12 Approvals CE, cURus, cULus Accessories NEMA 4X Cover 4272 Cooling capacity L35L35 (EN14511-3) 1100 W @ 50 Hz
1200 W @ 60 HzCooling capacity L35L50 (EN14511-3) 850 W @ 50 Hz
870 W @ 60 HzCompressor type Rotary piston compressor Refrigerant / GWP R 513A / 630 Refrigerant charge 412 g / 14.5 oz High / low Pressure 25 / 14 bar
363 / 203 psigAir flow volume (system / unimpeded) Ambient air circuit: 430 / 1200 m³/h
Cabinet air circuit: 200 / 550 m³/hOperating Temperature Range 10°C - 55°C Mounting Wall mounted / Recessed Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
1,250 x 395 x 145 (25+120) mm Weight 40 kg Cut out dimensions 1,231 x 376 mm Voltage / Frequency 230 V ~ 50/60 Hz Current L35L35 3.4 A @ 50 Hz
3.9 A @ 60 HzStarting current 15.5 A Max. current 4.6 A Nominal power L35L35 730 W @ 50 Hz
860 W @ 60 HzMax. power 1030 W Fuse 10 A (T) Max circuit ampacity 15 A Short-circuit current rating 5 kA Rated current compressor 15.5 A Full load current fans 5.2 A Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files STEPNEMA 4X cover Mounting template DXF externalDXF internal Certification EC declaration Certification (UK) UKCA declaration Video Service Video Part 1 B Wet Cleaning (big units)Service Video Part 2 - Dry cleaning Instructions Cleaning instructionCleaning instructions Box dimensions 1,347 x 496 x 204 mm Gross weight 45.5 kg Taric code 84158200 GTIN (EAN) 5350604371095
