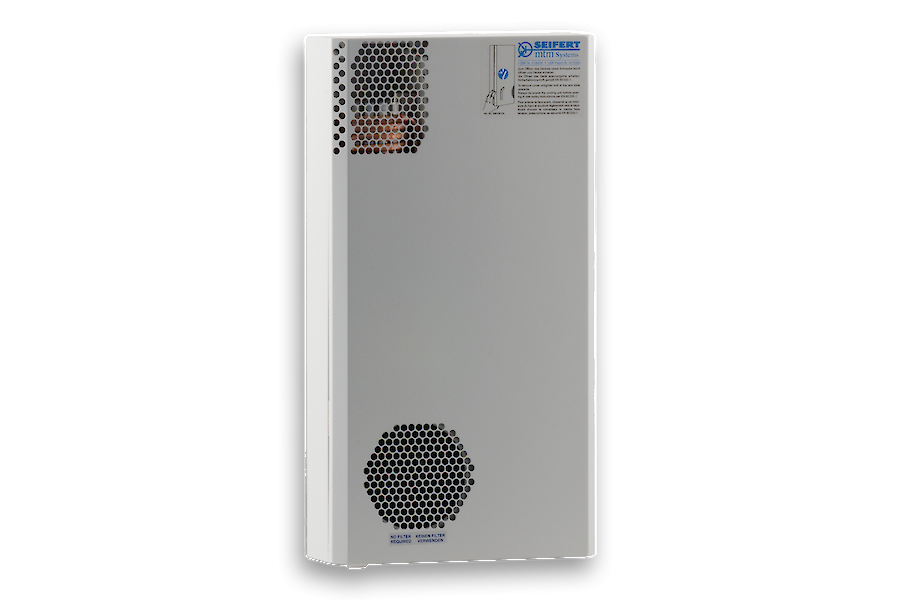

Features
- only 110 mm deep,ideal for smaller enclosures
- protection class IP 54
- completely filterless, thus maintenance free
- wall mounted or recessed
- NEMA 4X covers for stainless steel models
Quick Links
Cooling capacity L35L35 (EN14511-3) 500 W @ 50 Hz
520 W @ 60 HzCooling capacity L35L50 (EN14511-3) 160 W @ 50 Hz
180 W @ 60 HzEER L35L35 1.0 Compressor type Rotary piston compressor Refrigerant / GWP R 513A / 630 Refrigerant charge 142 g / 5 oz High / low Pressure 35 / 30 bar
290 / 188 psigAir flow volume (system / unimpeded) Ambient air circuit: 250 / 650 m³/h
Cabinet air circuit: 125 / 250 m³/hOperating Temperature Range 10°C - 50°C Mounting External Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
600 x 320 x 110 (25+85) mm Weight 15.8 kg Cut out dimensions 581 x 301 mm Voltage / Frequency 230 V ~ 50/60 Hz UL Voltage / Frequency 230 V ~ 60 Hz Current L35L35 2.2 A @ 50 Hz
2.2 A @ 60 HzStarting current 5.8 A Max. current 2.7 A Nominal power L35L35 460 W @ 50 Hz
500 W @ 60 HzMax. power 600 W Fuse 6 A (T) Short-circuit current rating 5 kA Rated current compressor 5.2 A Full load current fans 2.8 A Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF external Certification EC declaration Certification (UK) UKCA declaration Video Service Video Part 1 A Wet Cleaning (small units)Service Video Part 2 - Dry cleaning Instructions Cleaning instructionCleaning instructions Type Plate 42699575_xxxx.pdf No Order Information
