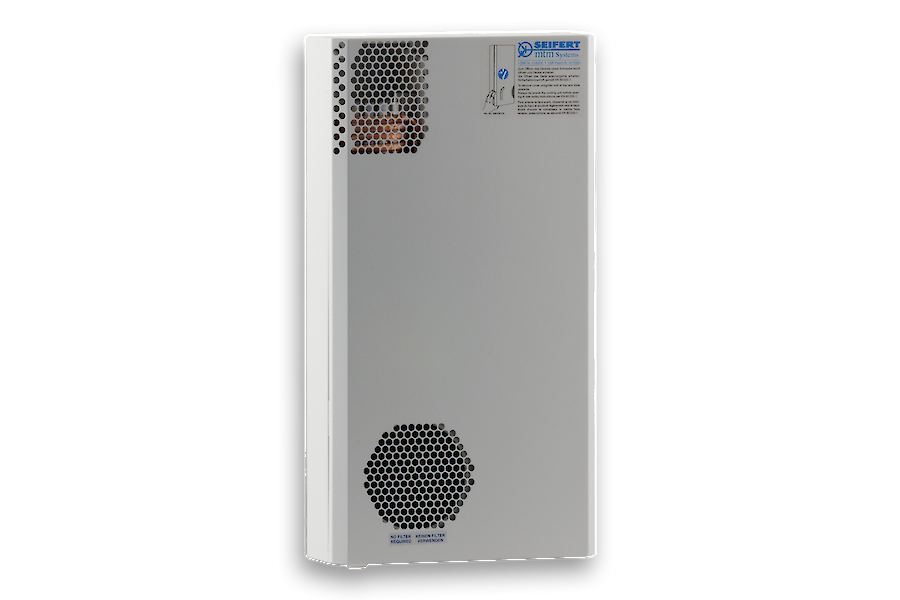

Features
- only 110 mm deep,ideal for smaller enclosures
- protection class IP 54
- completely filterless, thus maintenance free
- wall mounted or recessed
- NEMA 4X covers for stainless steel models
Quick Links
Cooling capacity L35L35 (EN14511-3) 520 W Cooling capacity L35L50 (EN14511-3) 180 W EER L35L35 1.1 Compressor type Rotary piston compressor Refrigerant / GWP R 513A / 630 Refrigerant charge 130 g / 5 oz High / low Pressure 17 / 15 bar
250 / 220 psigAir flow volume (system / unimpeded) Ambient air circuit: 250 / 650 m³/h

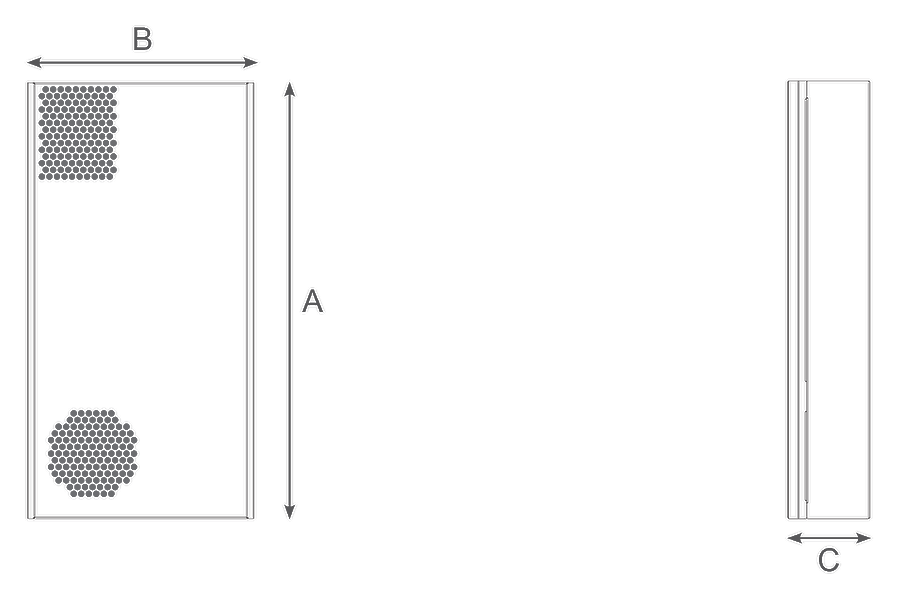

Cabinet air circuit: 125 / 250 m³/hOperating Temperature Range 10°C - 50°C Mounting External Dimensions A x B x C (D+E) A = Height | B = Width | C = Depth
600 x 320 x 110 (25+85) mm Weight 15.8 kg Cut out dimensions 581 x 301 mm Voltage / Frequency 120 V ~ 60 Hz Current L35L35 4.5 A Starting current 14.6 A Max. current 5.3 A Nominal power L35L35 540 W Max. power 600 W Fuse 6 A (T) Short-circuit current rating 5 kA Rated current compressor 15.2 A Full load current fans 5.3 A Connection Connection terminal block Datasheet Generate PDF Instruction manual Generate PDF CAD files STEP Mounting template DXF external Certification EC declaration Certification (UK) UKCA declaration Video Service Video Part 1 A Wet Cleaning (small units)Service Video Part 2 - Dry cleaning Instructions Cleaning instructionCleaning instructions Type Plate 42699525.pdf No Order Information
